Cookies drop machines Cookies drop machines

 Computerized machine for the automatic forming and dosing on trays of liquid, dense and hard dough. The computer can store various programs which makes products changeover simple and quick.

•• The easy adjustment of the parameters of each program facilitates the operator in creating biscuits according to his     fantasy.

•• Wire cutting device permits the production of short pastry type cookies and similar from hard dough (optional).

•• The machine is constructed in stainless steel & food grade anticordal aluminum.

•• The low height of the hopper enables easy access for loading the dough into the hopper.

•• Particular attention has been given to quick disassembly of the parts in contact with dough, in order to effect a     through cleaning of all parts.

We have wide range of machines -  cookies drop machines 4 nozzle, cookie drop machine 5 nozzle, cookie dropping machine 7 nozzel, cookie dropping machine 9 nozzle, cookie drop machine 6 nozzel and cookie drooping machine 8 nozzel.

You can select this machine according to your requirment of cookies production.




wire cut  Wire Cut
cookies drop stationery drop  Stationery Drop
cookies drop rotarydrop  Rotary Drop
cookies drop multi layer drop  Rotary Multi layer & conical





TECHNICAL SPECIFICATIONS :
Model No. Drops/ Row Tray Width Production Capacity/Hr.* Power Load
CD PM- 4 4 10"(250mm) 40-50 kg. 2 KW
CD PM-5 5 12"(300mm) 50-70 kg. 2 KW
CD PM-6 6 16"(400mm) 100-120 kg. 2.5 KW
CD PM-7 7 18"(450mm) 120-150 kg. 2.5 KW
CD PM-8 8 20"(500mm) 150-180 kg. 3 KW
CD PM-9 9 24"(600mm) 180-200 kg. 5 KW

•• Adjustable speed and time of depositing rollers.
•• Reverse cycle of depositing rollers for clean detachment.
•• Computerized adjustable speed for rotation of nozzles.
•• Automatic lowering of tray for efficient detachment.
•• Automatic advancement of tray.
•• Height adjustable conveyor belt.
•• Convenient position of electrical panel for easy maintenance.
•• Anti-slip conveyor belts in order to ensure the precise position of the cookies on the tray.
•• Production output/day displayed computer.
•• Adjustments for number of biscuits to be deposited per tray.
•• Heavy duty motors and electronic circuits designed to tolerate bearing power supply conditions.
•• Motor protections to protect alterations essential parameters by workers.
•• Fault display and method of rectification of fault automatically displayed by computer.
•• Special ex model to produce conical and multi layer cookies.

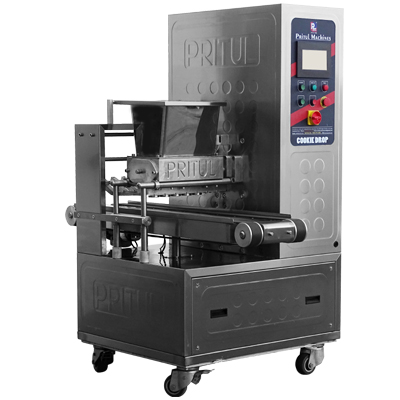

Cookies drop machines, computerized Cookies drop machines, cookie dropping machine
